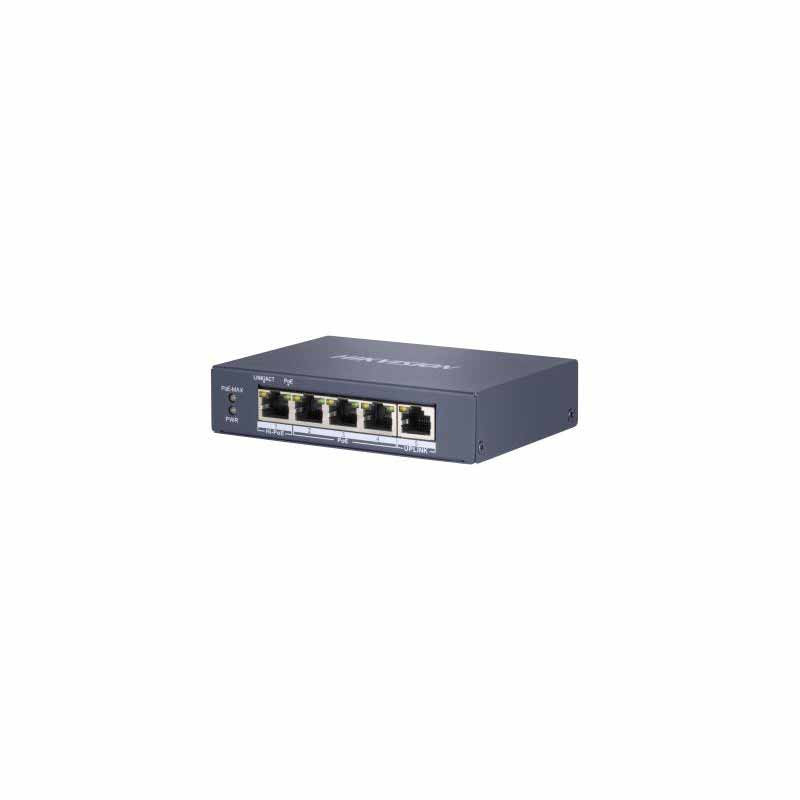

Hikvision DS-3E0505HP-E switch cu 5 porturi fara management

Parametri retea:

Numar porturi: 4 x porturi Gigabit PoE, 1 x port Gigabit RJ45 (uplink).

Tip porturi: RJ45 port, full duplex, MDI/MDI-X adaptiv.

Standarde: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab.

Capacitate de comutare (Switching Capacity): 10 Gbps.

Rata de transfer pachete (Forwarding Rate): 7.44 Mpps.

Tabela adrese MAC: 2 K.

Cache intern: 1 Mbits.

Moduri de functionare: Standard (default), Extend, Isolation, PoE Watchdog.

Alimentare PoE:

Standard PoE: Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt; Porturile 2-4: IEEE 802.3af, IEEE 802.3at.

Buget total putere PoE: 60 W.

Putere maxima per port: Port 1 (Hi-PoE): 60 W; Porturile 2-4: 30 W.

Pini alimentare PoE: 8 pini (1/2-, 3/6+, 4/5+, 7/8-).

Transmisie distanta lunga: Porturile 3 si 4 suporta pana la 300 metri (la 10 Mbps).

General:

Carcasa: Metalica, fara ventilator (fan-free design).

Greutate neta: 0.27 kg.

Dimensiuni (W x H x D): 121.0 mm x 88.1 mm x 27.6 mm.

Temperatura de operare: -10 grade C pana la 40 grade C.

Umiditate: 5% - 95% (fara condens).

Alimentare: 48 VDC, 1.35 A.

Consum maxim de energie: 65 W.

Protectie supratensiune: 6 KV pentru porturile PoE.
